Love it Willie! You did a great job with that crossbow.



Looking good!!!!



Long awaited REV "Y" is the latest update to the KODA-HO. With the addition of the top rail (now barrel) makes the REV "Y" shoot through riser possible. Swat type accuracy in a recurve package. Had a couple of small bugs but they are fixable.

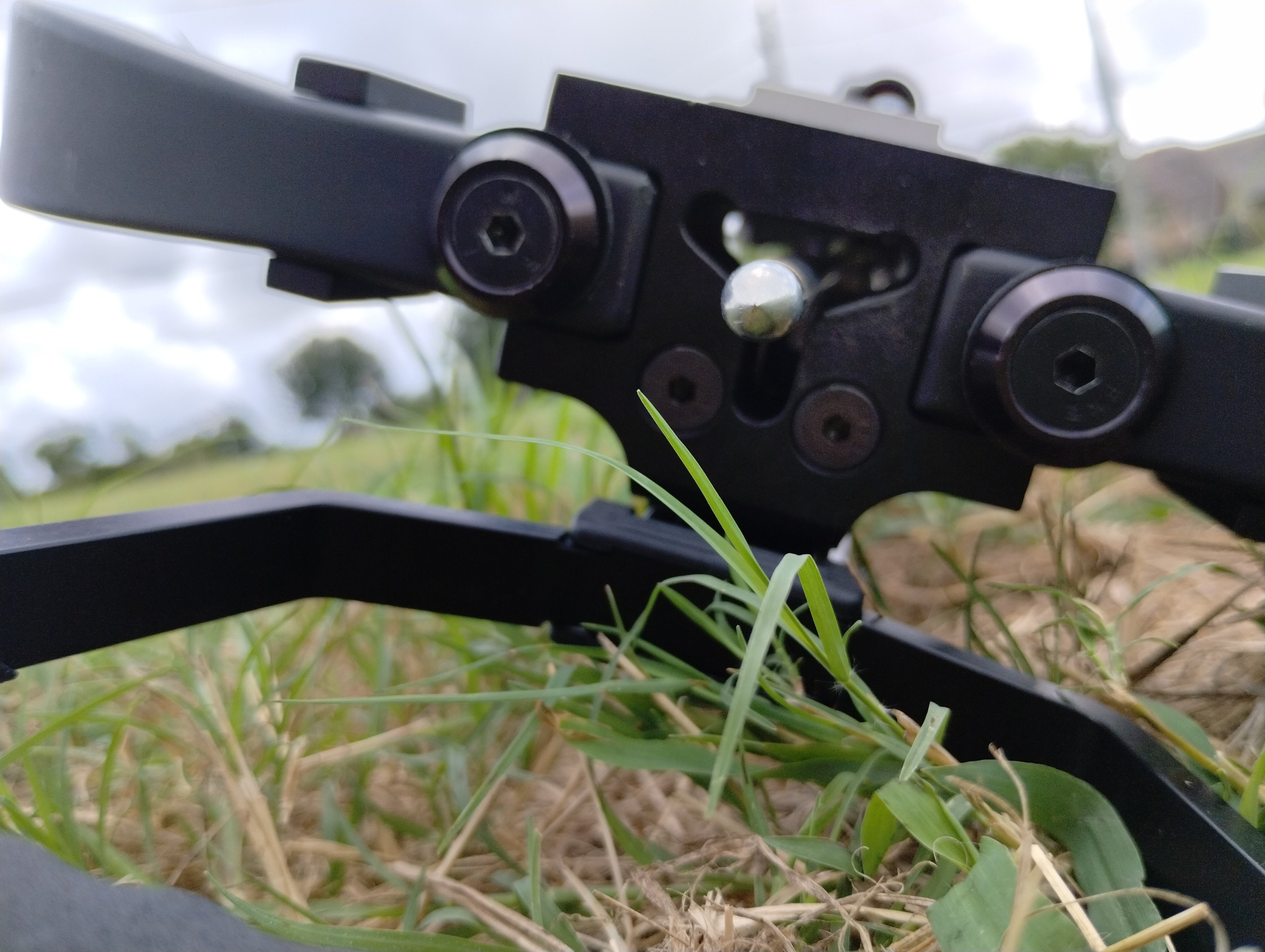

View attachment 345428

Mo pix! 😳



Pics of barrel progress.



Cool looking bow!



Am sure there are features that haven't been mentioned. Extendable butt & adjustable cheek piece via knurled knobs , safety release inside the thumbhole. Done but not installed crank handle holder. Lots of help from CBN members on accessories & features. Arrow retaining brush information from Tree Rat on his Burky Meat Smoker build, arrow clearance into from Joe PA on is Swat that was perfected by Burky. Old Flyers barreled recurve pics. Still working on some more future additions.



Nice looking crossbow.



Parts comedy. Was going to make my own string stops but these were so reasonable. So I ordered some string stops from Centerpoint. I ordered the left & right stops at $4.60 each and 2 pair of bumpers for $25.98 ($12.99 pair). I get the parts and left & right stops come with bumpers installed for $9.20 for the pair. Go figure?
Used the Centerpoint folding sturrip used by many on here including TX_RDXguy. Nice accessory!



One of the bugs that needs addressing is new cocking hooks. I have some material called PEEK that is 30% carbon reinforced. Anyone ever use this material for hooks?



Is it green? We have run some jobs with that material. If that is the stuff I've seen it crack.



Let us know weight and speed when you get a chance. That is one pretty bow.



Just put it on the scale since adding the top rail as posted in first post. As of 1 minute ago it is 10lb 4oz for a wood stock xBow.I have three sets of limbs. Been using what I think is the weakest limb set for now. Was at 394fps with a 400gr arrow without the rail. I believe 400fps is possible with a 400gr arrow. That said my go to arrow is 510gr with field point or broadhead and what was used today.



Holy cow! That is amazing!



Awesome bow Willie!



If there was a centerfold for Crossbow magazine, this would be Ms. August 2025 and probably Bow-mate of the Year!



Impressive 😍!!



Man there are some talented folks on here! Very sweet looking bow that performs! 👍



Is that a Kodabow rail? Why not some used Excalibur rail? Sure looks nice.



Didn't want an extruded rail. Koda rail is billet with more freedom to improvise. Got the rail from Chuck at Kodabow before he closed up for $75. I originally was going to machine a rail from billet.



Sweet looking bow, love the matching vertical lines on the upper to match the lower. Nice work!



That is one sharp looking bow!! Congrats on a GREAT build!! Awesome!



Working on hooks. Peek Carbon 30 material.



Modified the hooks some more and am working on electronics now. Will post finished photos for Jack Pine hopefully by the end of the week.



Post of some more features. Hook retention. This idea was from the beginning of this build to get the hooks out of the way. This is what I came up with and machined hook slots into the wood at an angle. Hidden under the cheek rest is a spring to give tension. Spring is then "Turned" into hole in the stock. Will post additional pics when fully assembled.



Due the the high poundage a crank is needed. Onboard crank was added. This addition also added a rear sling swivel. Stock was bored and and aluminum bolster was machined to fit. A bunch of searching but found a stainless quick release ball lock with features strength, loop and shortest possible length. Hate to sound lazy but no use reinventing the wheel and machining one from scratch or modding an existing one. Aluminum bolster has ridge that prevents loop spread. All stock inletting for the handle was done by hand.



This pic is strictly a wood shot. I am not the best photographer but wanted to show off the red & black laminate from a different angle. It is really striking in person hard to capture. Never really worked with laminate but discovered in this case grain makes a big difference. Sent Joe PA some boo boo pics back when gluing the fore end side plates with wrong orientation and the red just washed out. Metal is more my thing and wood was more of my father's calling. Started with Tru Oil and finished with Wipe on Polyurethane finish.
Now

Bad orientation

Correct



Made some progress on the electronics wiring today. Originally started with 60 series plugs but now have down sized to 30 series. My DIY battery pack consists of 2x 18650 wired in parallel for an output of 7000+ma. Pack features a low voltage cutoff @ 2.7v and USB 3.0 charging circuit and short protection. I made two battery packs with Panasonic cells. Stock fore end was inletted for batteries. Packs were finished with black heat shrink wrap.



I might have missed it, what are you planning on powering?



To be announced.
